Available Now Free Consultation Efficient 1320mm Automatic Reciprocating Spraying Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-ZDPT-1320PT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Spray Angle: | 0-180° | Power Supply: | AC220V/50HZ |
|---|---|---|---|
| Coating Speed: | 0-3m/min | Spray Height: | 0-1000mm |
| Control System: | PLC/HMI | Spray Volume: | 0-1000ml/min |
| Coating Thickness: | 0.1-3mm | Spray Gun: | Manual, Automatic |
Product Description
Available Now Free Consultation Efficient 1320mm Automatic Reciprocating Spraying Machine
Product Description:
The Automatic Spraying Machine by Dongguan Osmann Machinery Equipment Co., Ltd. is a state-of-the-art equipment designed for precision spraying applications. It is ideal for various industries such as panel furniture, plane mesh, solid wood doors, handicrafts, decorative panels, cabinet doors, and photovoltaic glass. The machine provides exceptional quality and efficiency in spraying PU NC color glaze and water-based paint, enhancing product finishes while reducing paint wastage and costs.
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | Full Automatic Spraying Machine (Effective Width: 1300mm) |
| Model | OSM-GX-PV-13200/PT |
| Power Supply | 380VAC/50HZ |
| Total Power | 4.6KW |
| Machining Width | 300mm |
| Machining Thickness | 3-200mm |
| Minimum Machining Length | 1000mm, Spray Gun Diameter: 1.0-1.5mm |

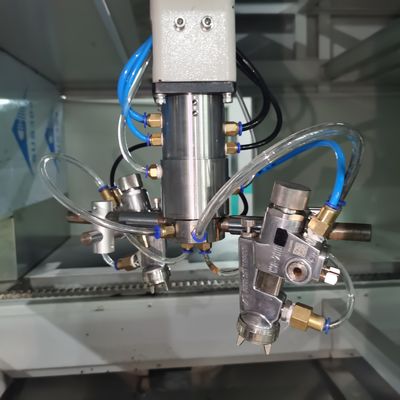

| Painting | Four Japanese Yantian automatic spray guns, fixed spray guns for uniform spraying |

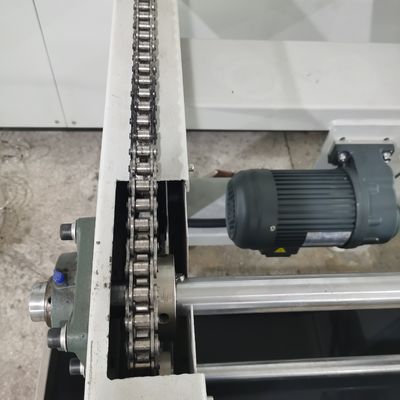

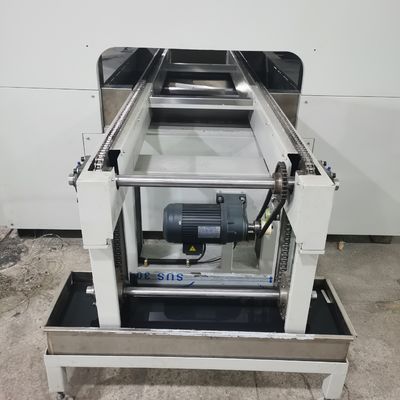

| Conveying System | Rotating roller for product conveyance, adjustable distance between spray gun and product |
| Spray Gun System | Spray gun with OMRON electric eye control for uniform painting |
| Oil Supply System | Two Taiwan Xinjing 1-inch diaphragm pumps with pressure stabilizing valves |
| Paint Recovery Unit | Dry circulation system to minimize paint on stainless steel bracket |
| Air Filter | High-efficiency air filter for clean spraying environment |
Application:
The automatic spraying machine is suitable for a wide range of applications, including panel furniture, solid wood doors, decorative panels, and photovoltaic glass. It is designed to enhance product quality and production efficiency while reducing paint wastage.
Customization:
Customization options include adjusting the spray gun angles, spray pressure, and spacing based on specific requirements. The machine can be tailored to meet individual needs for optimal performance.
Features:
- Equipped with high-quality Japanese automatic spray guns for precise and uniform coating application.
- Utilizes a rotating roller conveying system for efficient product movement.
- Advanced control systems ensure perfect spraying quality and minimize paint loss.
- Incorporates a paint recovery unit for minimizing paint wastage and maintaining a clean working environment.
Support and Services:
Dongguan Osmann Machinery Equipment Co., Ltd. offers comprehensive support and services, including technical assistance, maintenance, and spare parts availability to ensure the smooth operation of the equipment.
Packing and Shipping:
The machine is securely packed to prevent damage during transportation. Various shipping options are available to meet customer preferences and ensure safe delivery.
FAQ:
-
Q: What is the power supply requirement for the automatic spraying machine?
A: The machine operates on 380VAC/50HZ power supply. -
Q: Can the spray gun angles be adjusted on the machine?
A: Yes, the spray gun angles can be manually adjusted for precise and uniform spraying. -
Q: How does the paint recovery unit work?
A: The paint recovery unit utilizes a dry circulation system to minimize paint on the stainless steel bracket, reducing paint wastage and ensuring a clean working environment.
