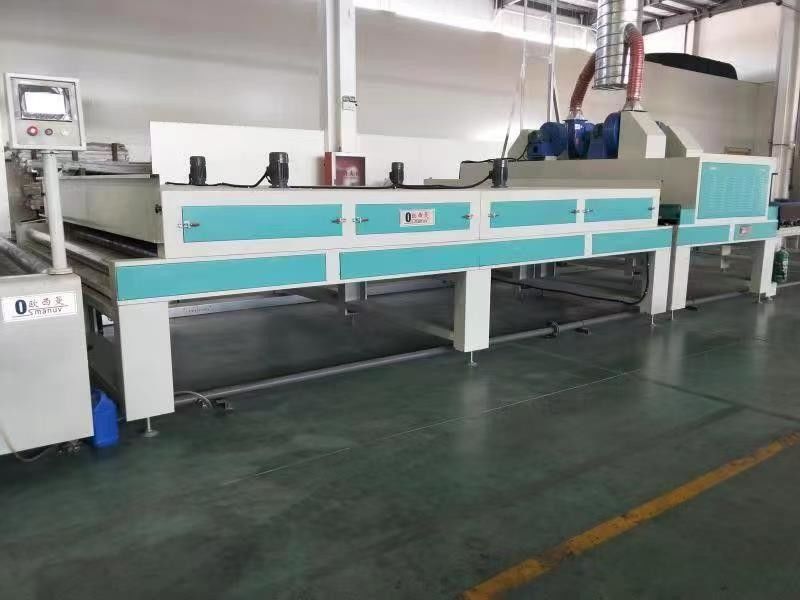

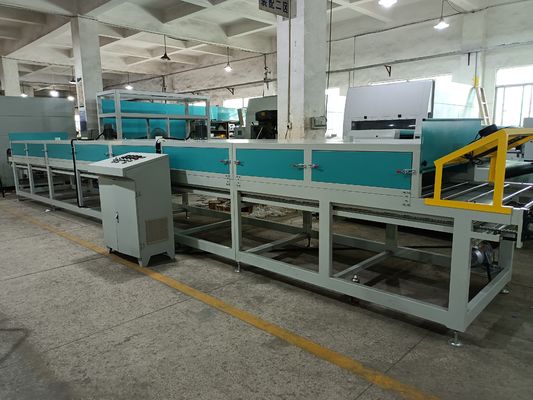

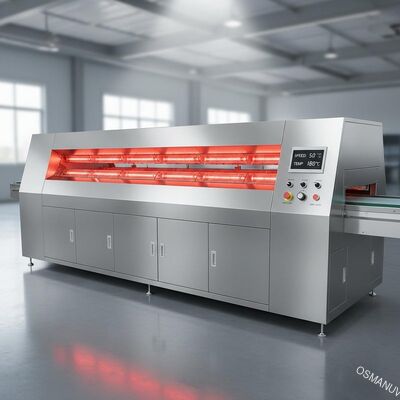

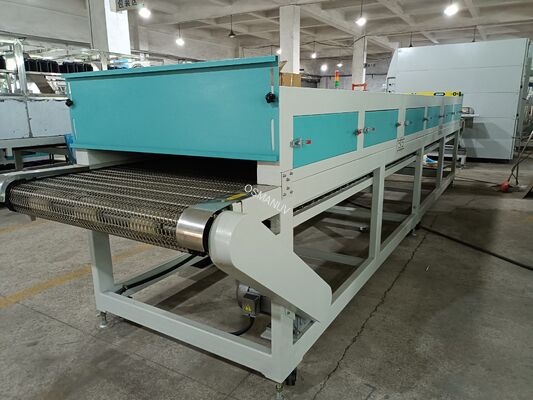

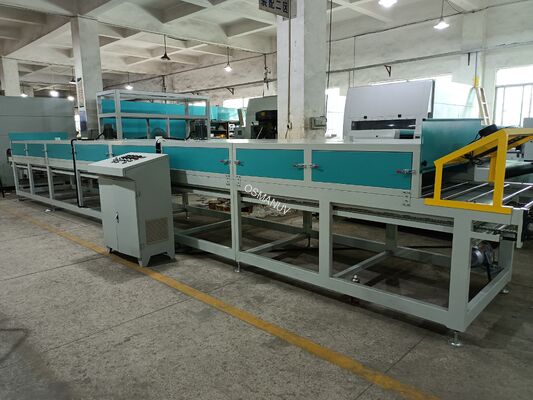

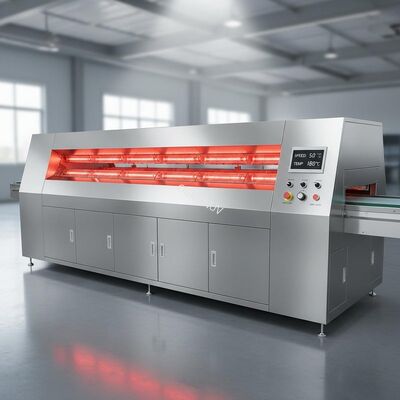

Fully Automatic Adjustable Speed Infrared Drying Machine Of 200 Effective Width
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-IR-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | Customizable |
|
Detail Information |
|||
| Specifications: | 5000mm L×1000mm W×1280mm H | Light: | 750W Infrared Quartz Lamp |
|---|---|---|---|
| Effective Dry Width: | 200mm | Conveyor Belt: | Teflon Mesh Belt |
| Control System:: | PLC Or BKC | Outlet Temperature:: | 80-250 Degree |
| Application: | Water Based Coat Product , Board , Aerogel , Pulp Molding | Material: | Stainless Steel 304 |
| Highlight: | Adjustable Speed Infrared Drying Machine,200 Effective Width Infrared Drying Machine,Fully Automatic Infrared Drying Machine |
||
Product Description
Fully Automatic Adjustable Speed Infrared Drying Machine Of 200 Effective Width
5 Meters IR Drying Machine.pdf
Product Description:
The 5 Meters IR Drying Machine, Model OSM-IR-200 by Dongguan Osmanuv Machinery Equipment Co., Ltd., is a cutting-edge solution designed for precise infrared drying applications in various industries.
Technical Parameters:
| Parameter | Value |
|---|---|
|
Name
|
5 Meters IR Drying Machine |
|
Model
|
OSM-IR-200 |
|
Specifications
|
5000mm L x 1000mm W x 1280mm H (Dimensions subject to the physical object) |
|
Material Quality
|
Cold-rolled plate bending welding, inner wall made of SUS 304 # stainless steel |
|

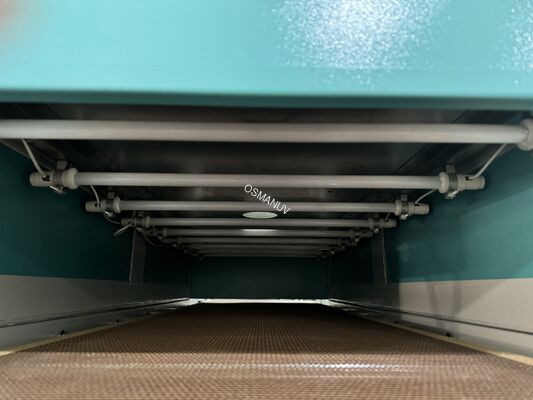

Light
|
Utilizes infrared quartz lamp of Heares pipe imported from the United States, with 750W extended shaft motor |
|
Effective Flow Level Width
|
200mm |
|

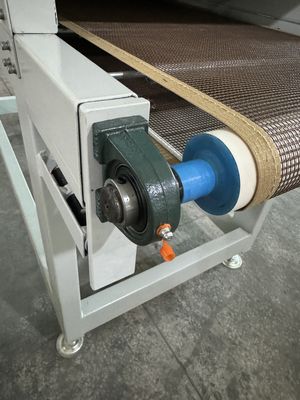

Conveyor Belt
|
American Kevlar conveyor net belt for smooth delivery |
|
Drive System
|
Transmission motor utilizes Taiwan TWT gear reducer |
|
Control System
|
Features Taiwan Delta frequency converter for speed adjustment (1-5 m/min) |
|
Control System
|
Equipped with BKC temperature controller for temperature control (adjustable room temperature-100℃) |
|
Electrical Parts
|
Includes Taiwan Delta frequency converter, Japan OMRON or BKC thermostat, CHNT contactor |
|
Security System
|
Taiwan Yangming silicon controller, super temperature protector, motor overload protection, control line insurance, emergency stop switch, meeting international standards for electrical appliances |
Application:
Ideal for food processing, pharmaceuticals, and various manufacturing industries, enhancing production efficiency and product quality.
Customization:
Tailored solutions available to meet specific requirements, including adjustments to temperature control, conveyor speed, and additional safety features.
Feature:
- Utilizes high-quality materials for durability and efficient drying.
- Incorporates advanced infrared technology for precise and uniform drying.
- Offers flexible customization options for diverse industry needs.
Support and Services:
Purchase any product and equipment of Osmanuv Machinery Equipment Co., Ltd. to get lifelong product after-sales service. Here we make the following commitments:
-
All equipment sold by our company is guaranteed for one year (except consumable parts).
During the warranty period, if the equipment itself is defective, overseas customers can provide online services through remote video, email, or conference.
-
Once the contract is signed and the customer's order is placed, the after-sales service period begins indefinitely. We will repair and provide the spare parts ordered by the customer in a timely manner and provide all kinds of services required by the customer. We have the obligation and responsibility to answer any questions raised by the customer at any time. For overseas customers, we will promptly answer the questions they need and provide timely answers to equipment consumables.
-
Our company is responsible for customer training and lifelong technical support.
-
Stay ahead of the failure and ensure that any equipment sold by our company is fault-free.
-
Make every customer satisfied with us and make customers satisfied with every service we provide.
-
During the equipment operation period, we understand the operating status of each equipment, eliminate possible hidden dangers, and guide customers on maintenance.
-
If a failure occurs, we will respond within four hours of receiving the notification, 4 hours in China and 10 hours abroad.
-
We must establish a good cooperative relationship with customers, learn from each other in cooperation, listen to customers' suggestions, and respect customers' opinions.
Packing and Shipping:
Supports sea, air, and land transportation; wooden crate packaging with tax-exempt wooden boards for secure and damage-free transit.
FAQ:
- Q: What is the warranty period for equipment?
A: All equipment is guaranteed for one year, with after-sales services and online support. - Q: How is equipment maintenance handled?
A: We offer timely repairs, spare part replacements, and maintenance services as part of our lifelong support commitment. - Q: Can the equipment be customized for specific applications?
A: Yes, we provide customization options to meet individual industry requirements, ensuring optimal performance.
