Waterproof Oil Proof High Barrier Spin Coating Equipment For Food Packages
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-XT-2400TS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Work days |
| Payment Terms: | T/T |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Specifications: | Length: 2400mm * Width: 2700mm * Height: 500mm | Spray Room: | Stainless Material Was Used To Make The Oil Injection Chamber With 24 Stations |
|---|---|---|---|

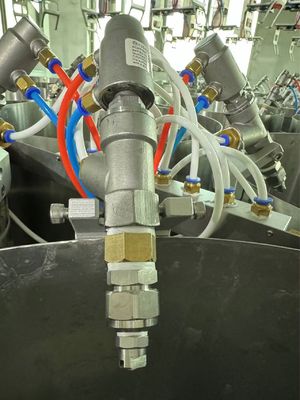

| Spray Nozzle: | Use Taiwan Changyuan Oil Injection Nozzle | Rotation System: | Speed-regulating Motor (with Brake Function) |
| Oil Supply System:: | Using Pneumatic Diaphragm Pump Automatic Oil Supporting Oil And Gas Precision Pressure Stabilization System. | Electrical Parts: | CHNT Contactor, Taiwan Delta Frequency Converter, Switch Using Japan And Spring Switch Are In Line With The International Standards Of Imported Electrical Appliances. |
| Solenoidvalve: | 4V310-10 DV24V | Human-computer Interface: | A 7-inch Nylon Touch Screen |
| Highlight: | High Barrier Spin Coating Equipment,Oil Proof Spin Coating Equipment,Waterproof Spin Coating Equipment |
||
Product Description
Product Description:
Version 2.0 of 24-station spin coating production ...
The 24-Station Spin Coating Production Line Version 2.0 offered by Dongguan Osmanuv Machinery Equipment Co., Ltd. is a cutting-edge solution for precise coating applications in various industries, ensuring exceptional consistency and control across different substrates.
Features:
- Precision Coating for even thickness
- Versatile with a wide range of substrates
- User-Friendly Interface for easy operation
- High Efficiency for enhanced productivity
- Customizable Parameters for specific needs
- Reliable with robust construction
- Safety Features for operator protection
Technical Parameters:
| 4.2m Pre-Conveyor |
Suitable for conveying workpieces in assembly line operations such as paper and plastic packaging, plastic products, and flat board crafts. Size: 4200mm L x 2500mm W x 850mm H. Supply Voltage: 380V 50HZ. Material: Shell made of 1.5mm cold-rolled plate. Conveying Direction: From right to left. Power: 0.75kW. |
|---|---|

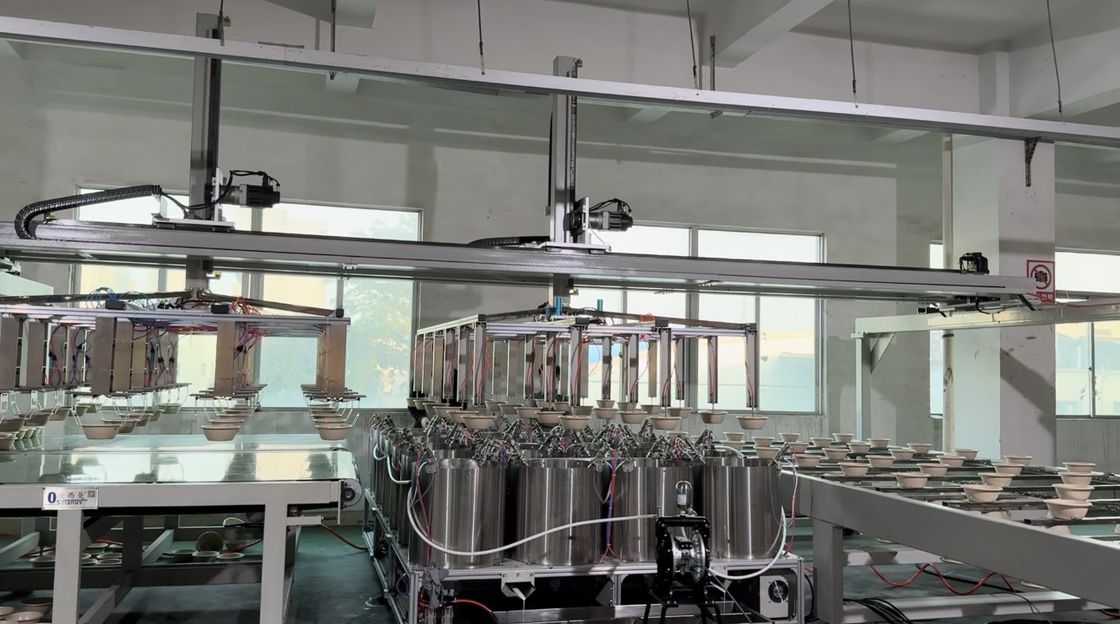

| Gantry Robot (Double-station) |
Application: Smooth loading and unloading of paper-plastic packaging and plastic products on the assembly line. Feeding System: Workpiece surface adsorbed by vacuum suction cup. Reclaiming System: Automatic removal of sprayed products with a special fixture. Power Part: Driven by Delta servo motor. Control Electrical Parts: CHNT, Delta, OMRON. |

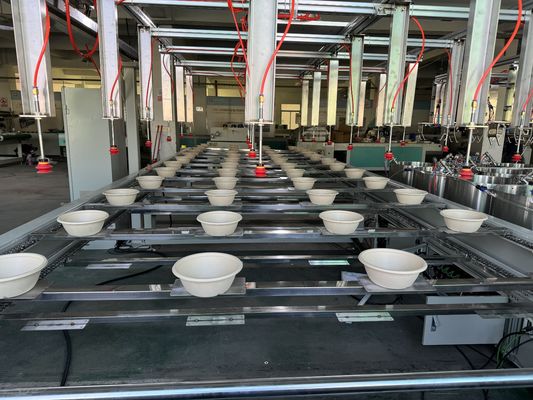

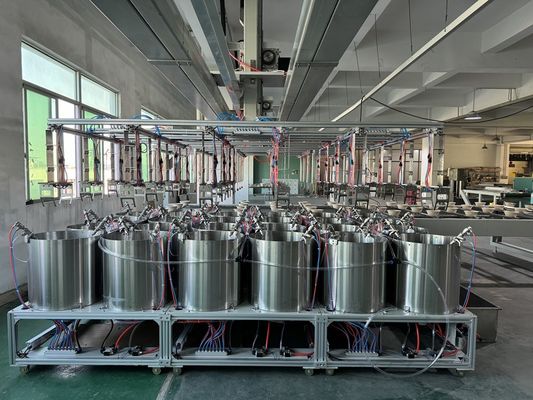

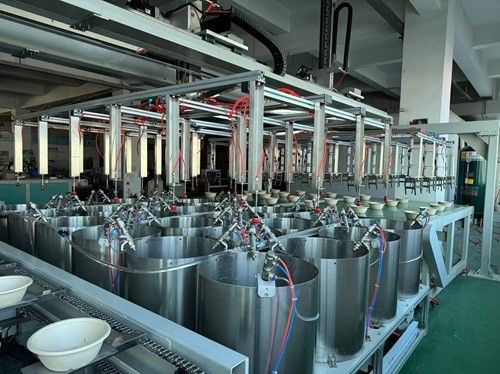

| 24-station Spin Coating Machine |

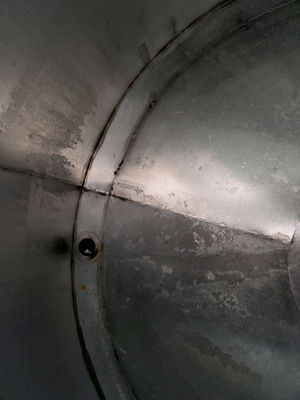

Size: Length 3250mm x Width 2150mm x Height 1020mm. Spray Room: Made of 304# stainless steel with 24 stations. Nozzle: Taiyuan Changyuan. Rotation System: Controlled by servo motor. Oil Supply System: Pneumatic diaphragm pump. Electrical Parts: CHNT contactors, Delta servo motors, imported switches. Safety System: Over-temperature preventer, motor overload protection, emergency stop switch. |
| 21m Infrared Drying Machine |
Size: Length 21000mm x Width 2700mm x Height 1680mm. Material: A3 board shell with thermal insulation cotton. Light Tube: Infrared IR lamp tube. Effective Drying Width: 2400mm. Control System: Taiwan Delta inverter. Electrical Parts: OMRON thermostat, CHNT contactor, Taiwan Delta inverter. Security System: Over-temperature preventer, motor overload protection. |
| Air Cooling Conveyor |
Size: Length 3000mm x Width 2750mm x Height 1250mm. Material: Outer shell of 2.0 cold-rolled plate, Teflon conveyor belt. Conveyor Speed: 1-10m/min. Electrical Parts: OMRON thermostat, CHNT contactor, Taiwan Delta inverter. Safety System: Motor overload protection, control circuit insurance. |
Applications:
The 24-Station Spin Coating Production Line is versatile, ideal for industries requiring precise coating applications such as paper-plastic packaging and various crafts
Customization:
Tailored solutions are available to meet the unique requirements of customers, ensuring equipment alignment with specific manufacturing needs.
Support and Services:
Our product support includes installation assistance, product training, troubleshooting, maintenance services, and expert consultation for customized solutions to optimize equipment performance.
- Installation and setup assistance
- Product training and education
- Product troubleshooting and maintenance
- Product repair and replacement services
- Expert consultation for customized solutions
Our team of experienced professionals is dedicated to ensuring that your UV Coating Machine operates at its optimal level of performance. Contact us today to learn more about our technical support and services!
Packing and Shipping:
Product Packaging:
- Securely packaged in a sturdy cardboard box.
- Wrapped in bubble wrap and foam inserts for safe shipping.
- Includes all necessary accessories and user manuals.
Shipping:
- Shipped via reputable courier services with tracking numbers provided.
- Worldwide shipping available, with additional fees for international orders.
FAQ:
Q1: Is the machine certified?
A1: Yes, it holds CE certification.
Q2: What is the minimum order quantity?
A2: The minimum order is 1 set.
Q3: Is the price negotiable?
A3: Yes, pricing is negotiable.
Q4: How is the machine packaged?
A4: It comes in a wooden box.
Q5: What are the accepted payment terms?
A5: T/T can be accepted.
