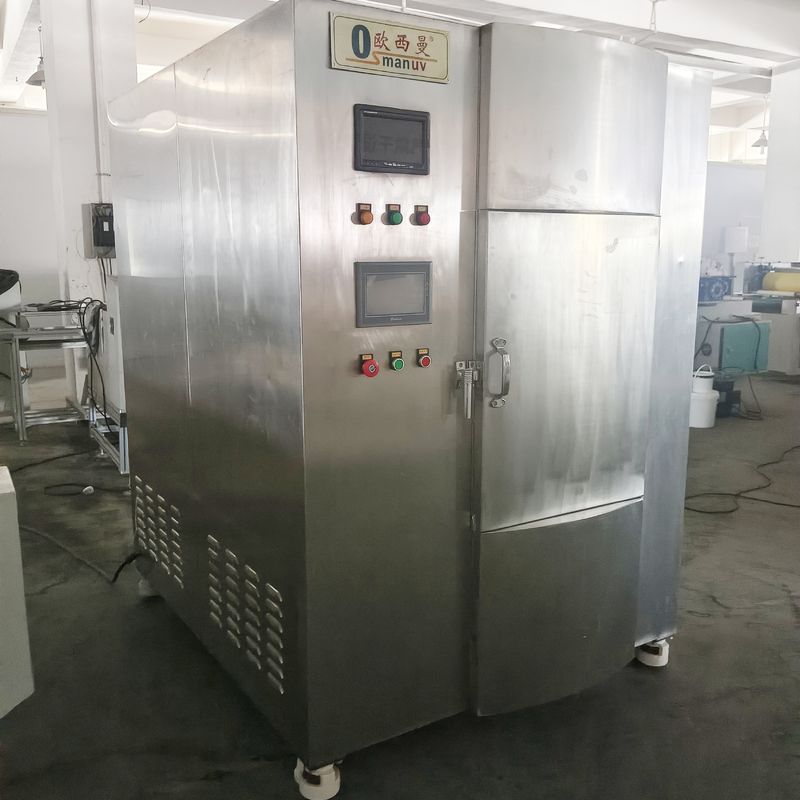

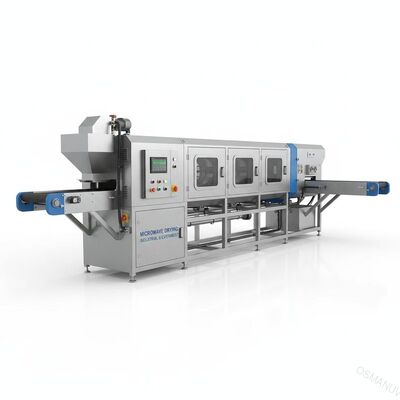

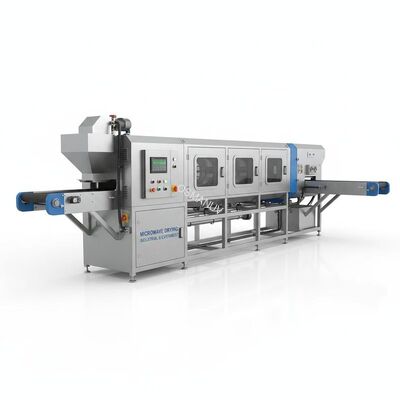

Customizable 1-10m/Min Microwave Drying Equipment For Industrial and Experiment
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Drying Equipment | Conveyor Belt Line Speed: | 1-10m/min, Adjustable By Frequency Conversion |
|---|---|---|---|
| Conveyor Belt:: | Plastic Conveyor Belt (PP White Tank Chain Conveyor Belt) | Conveyor Width: | 1320 Mm |
| Magnetron Cooling Method: | Water Cooling | Dimensions (L×W×H): | 17530 Mm×1600 Mm×1100 Mm |
| Conveying Drive System: | Servo Motor | Material: | 1.5mm SUS 304# Stainless Steel Plate |
| Highlight: | 10m/Min Microwave Drying Equipment,Customizable Microwave Drying Equipment,Industrial Microwave Drying Equipment |
||
Product Description
Customizable 1-10m/Min Microwave Drying Equipment For Industrial
Description:
| Model number | OSM-WBHG-1320 water-based paint drying production line | ||
| Input power | Three-phase five-wire 380V±10% 50Hz±2% (the zero line must be the same size as the phase line) | ||
| Rated input power | Microwave≤35kVA | ||
| Microwave output power | ≥85KW | Adjustable power | |
| Microwave frequency | 2450MHz±50Hz | ||
|
Dimensions |
17530mm×1600mm×1100mm | ||
| Number of boxes size: | Cabinet: 9 | Width: 1170mm | |
| Suppressor size: | Suppressor length: 2000mm opening height: 180 mm | ||
| Microwave energy feeding method | Top feed | Aluminum waveguide | |
| Use environment temperature | 0～40℃ | Relative humidity≤80% | |
| Use environment | No corrosive gas around, no conductive dust and explosive gas | ||
| Magnetron cooling method | Water cooling | ||
| Microwave power supply cooling method | Oil-soaked and water-cooled | ||
| Operation control system | PLC programming control with luxurious buttons (with microwave, transmission, temperature control instruments) | ||

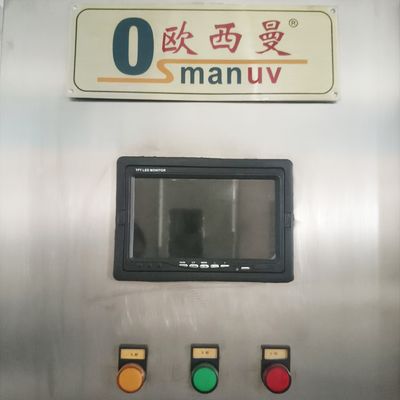

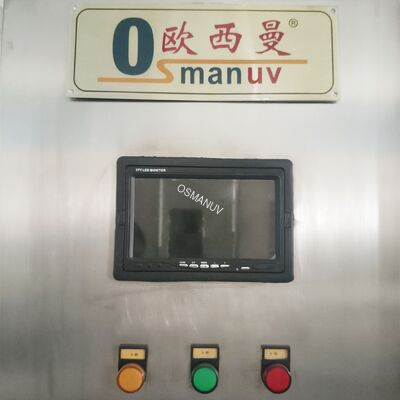

| Surveillance system | The microwave box has a built-in camera, and the operator can see the working status of the product through the display | ||
| Microwave tube | Adopt Japanese Panasonic or TOSHIBA brand | ||
| Power Controller | Oil-immersed microwave power controller (30%-100% adjustment) | ||
| Microwave leakage safety | Comply with GB 10436-1989 hygiene standard for microwave radiation in workplace | ||
| Food machinery hygiene and safety | Comply with GB 16798-1997 mechanical health and safety indicators | ||
| Mechanical and electrical equipment safety | Comply with GB/5226.1-2002 mechanical safety mechanical electrical equipment | ||
| Safety of electric heating device | Comply with GB 5959.6-2008 Safety Part 6 of Electric Heating Device | ||
| Total input power of equipment | Around 85KW | ||
| Microwave output power: | 85KW | ||
| Temperature control during drying process of water-based paper tray | Increase from room temperature to about 80℃ | ||
| cooling method: | Magnetron water cooling, microwave electronic power transformer oil immersion water cooling (water volume and water pressure protection system) | ||
| Magnetron life: | Continuous work is greater than or equal to 6000-8000 hours | ||
| control method: | Independent console, 1 Delta PLC controller, 1 set of Weilun touch screen system, | ||
| Turn on and turn off the whole machine: | Set emergency stop switch, turn on or turn off all functions of the whole machine | ||
| Magnetron wire | Need more than 4 square wires | ||
| Microwave power control; | According to process requirements, the microwave power can be adjusted freely | ||
| conveyor: | Using PP plastic conveyor belt (tank chain conveyor belt) transmission, width: 1320mm | ||
| Conveyor belt speed: | 1-10m/min, Delta inverter speed is adjustable | ||
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
